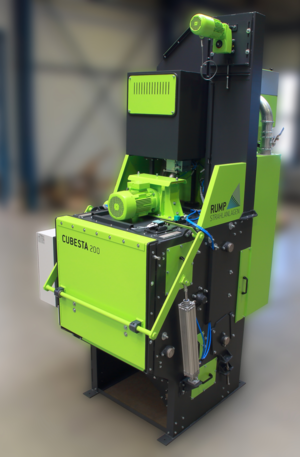

CUBESTA® eco

Our compact solution in the field of tumble shotblasting machines

Quality with the smallest footprint

The CUBESTA® eco requires very little floor space without foundation of 2040mm width x 2300mm depth x 4000mm height. It can thus be set up quickly and appropriately and is directly ready for operation.

Operation is straightforward, as well as maintenance. This makes the CUBESTA® eco an efficient system for

  • Blasting batch-processed workpieces
  • Descaling of forged, welded and flame-cutting parts
  • Surface hardening of springs

Function

Material is fed manually by an operator at a loading height of 1150 mm. Following manual closing of the cabinet door, the surfaces of the workpieces are machined optimally on all sides during blasting due to the overturning motion of the tumble belt.

The shotblast wheel used is the “R” turbine which is easy to maintain. The blasting abrasive is reclaimed to the bucket elevator via a screw conveyor installed in the funnel. Smaller particles are extracted from the blasting abrasive in the optimised, one-level separator by means of an airstream, and fed to the filter system. The cleaned air is discharged into the open via an exhaust pipe.

To empty the dust collector resting on rollers below the filter funnel, it is detached and pulled out. Once the blasting process is completed, the workpieces are discharged to a transport container placed below by means of the backward motion of the tumble belt. The control cabinet is equipped with a PLC - a programmable logic controller.



Upgrades

The following options are available for the CUBESTA® eco:

Pneumatic actuation of cabinet door

Air recirculation via secondary single filter

Frequency-controlled speed adjustment of the turbine

Container-hoisting-tipping unit for material feed

Discharge conveyor belt for material removal

Abrasive refill hopper

Here you will find the brochure

Technical Data

Type CUBESTA® eco
Tumble conveyor belt dimensions ø 900 mm x 850 mm
Charge weight 400 kg
Filling volume 200 l
max. single weight 20 kg
max. part length 300 mm
Turbine and power R320 – 7.5 kW
Dedusting 1,500 m³/h
Connected load ~ 13 kW
